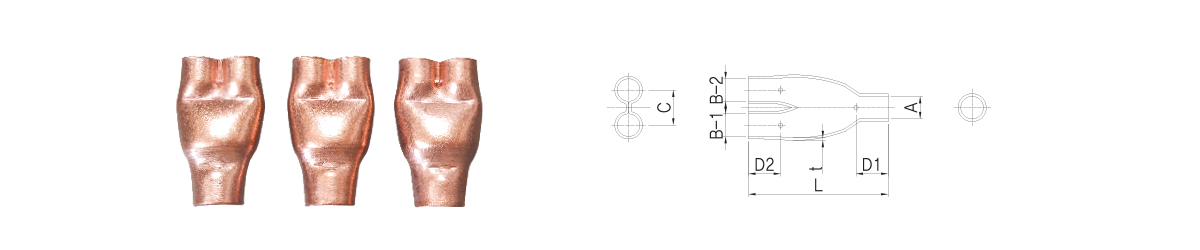

分歧管（二口）   Coupling (2 Hole)

(mm)

Model	Pipe Spec.		L	In		Out			C
	OD	T		A	D1	B-1	B-2	D2
0895A	12.7	0.8	40	5	10	5	5	10	8
0895C	12.7	0.8	40	6.5	10	5	5	10	8
0895B	12.7	0.8	40	8.1	10	5	5	10	8
2716A	15.88	0.95	40	6.5	10	6.5	6.5	10	11
2717A	15.88	0.95	40	9.7	10	6.5	6.5	10	11
2717C	15.88	0.95	40	8.1	10	6.5	6.5	10	11
1192B	22.2	1.15	50	9.7	10	9.7	9.7	10	14
1192D	22.2	1.15	50	12.9	10	9.7	9.7	10	14
1192F	22.2	1.15	50	8.1	10	9.7	9.7	10	14
1192G	22.2	1.15	50	8.1	10	8.1	8.1	10	14

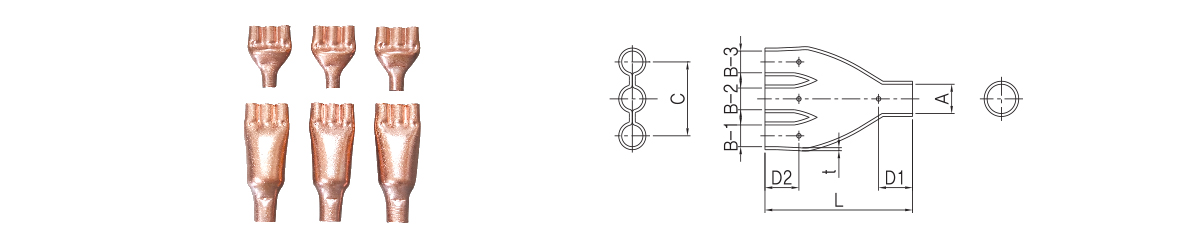

分歧管（三口）   Coupling (3 Hole)

(mm)

Model	Pipe Spec.		L	In		Out				C
	OD	T		A	D1	B-1	B-2	B-3	D2
30329E	22.2	1.15	73	6.5	10	6.5	6.5	6.5	10	20
30329H	22.2	1.15	73	8.1	10	6.5	6.5	6.5	10	20
30329D	22.2	1.15	73	9.7	10	6.5	6.5	6.5	10	20
30329G	22.2	1.15	73	12.9	10	6.5	6.5	6.5	10	20

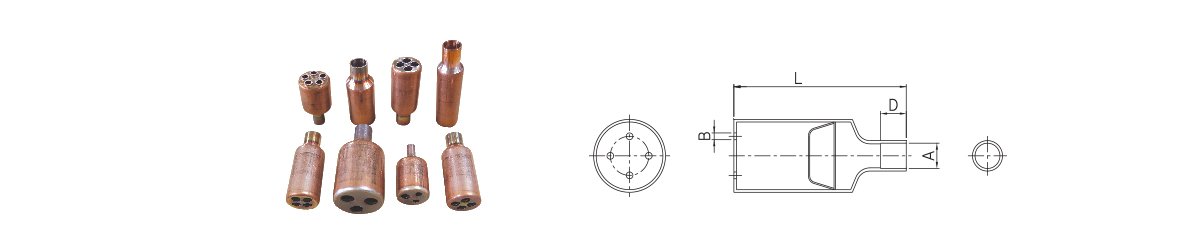

分歧管   Distributor

(mm)

Model	Pipe Spec.		L	In		Out		Remark
	OD	T		A	D1	N (Hole)	B
21174D	22.2	1.15	50	6.5	10	4	5	-
21174A	22.2	1.15	50	8.1	10	3	5	-
21174B	22.2	1.15	50	9.7	10	2	5	-
21174C	22.2	1.15	50	9.7	10	3	5	-
70301	22.2	1.15	82	12.9	10	5	4.9	-
8401	25.4	1.15	50	4.9	10	2	4.9	-
						1	6.5
2836A	25.4	1.15	50	9.7	10	4	5	-
2836C	25.4	1.15	50	9.7	10	3	5	-
33903	25.4	1.15	51.5	9.7	10	3	6.5	-
33904	25.4	1.15	51.5	12.9	10	3	6.5	-
66901	25.4	1.15	58	9.7	10	6	5.1	-
33901	25.4	1.15	65	9.7	10	4	6.5	-
33902	25.4	1.15	65	12.9	10	4	6.5	-
3395F	28	1.25	50	6.5	10	5	5	-
2836D	28	1.25	50	9.7	10	2	5	-
2836F	28	1.25	50	9.7	10	4	5	-
3395A	28	1.25	50	9.7	10	5	5	-
3395E	28	1.25	50	9.7	10	4	5	-
20720S	38	1.45	60	9.7	10	7	3.4	-
20720U	38	1.45	60	9.7	10	7	2.8	-
2531Z	38	1.45	60	12.9	10	8	3.4	-
21174G	38	1.45	73	12.9	10	3	9.7	-
21174N	38	1.45	73	16	10	3	9.7	-

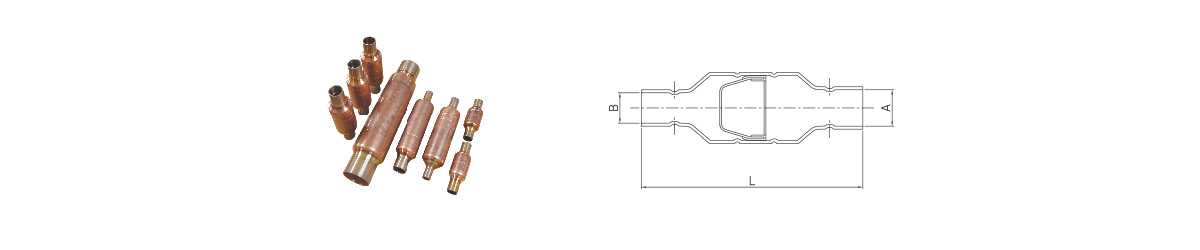

消音器  Muffler

(mm)

Model	Pipe Spec.		L	In		Out		Remark
	OD	T		A	D1	B	D2
20010B	19.05	0.95	80	6.5	10	6.5	10	Screen / Silence
20010F	19.05	0.95	80	6.5	10	8.1	10	Screen / Silence
20010A	19.05	0.95	80	9.7	10	9.7	10	Screen / Silence
20010C	19.05	0.95	80	9.7	10	8.1	10	Screen / Silence
20010D	19.05	0.95	80	9.7	10	6.5	10	Screen / Silence
9028	28	1.25	90	8.1	10	8.1	10	-
30003U	31.75	1.25	85	9.7	10	9.7	10	-
30003D	31.75	1.25	102	8.1	10	8.1	10	-
30004E	31.75	1.25	102	9.7	Thru	8.2	10	-
30003K	31.75	1.25	102	9.7	Thru	9.7	10	-
30003L	31.75	1.25	102	9.7	10	9.7	10	-
232K	31.75	1.25	140	12.9	10	12.9	10	-
01354A	31.75	0.8	145	8.2	8	8.6	Thru	-
01354E	31.75	0.8	145	8.2	8	7.5	Thru	-
232S	31.75	1.25	150	9.7	10	9.7	10	-
30003C	31.75	1.25	150	9.7	Thru	9.7	10	-
30003J	31.75	1.25	150	9.7	10	9.7	10	-
9230	31.75	1.25	150	9.7	Thru	9.7	10	-
232B	31.75	1.25	150	12.9	Thru	12.9	10	-
30003A	31.75	1.25	150	12.9	Thru	9.7	10	-
30003B	31.75	1.25	150	12.9	Thru	12.9	10	-
30003N	31.75	1.25	150	16.1	Thru	12.9	10	-
232D	31.75	1.25	150	16.5	10	12.9	10	-
232E	31.75	1.25	155	12.9	10	13.8	Thru	-
232V	31.75	1.25	155	12.9	Thru	13.8	Thru	-
30002C	31.75	1.25	168	9.7	10	9.7	10	-
30002E	31.75	1.25	168	9.7	10	12.9	10	-
30002D	31.75	1.25	168	12.9	10	12.9	10	-
30002A	31.75	1.25	168	16.1	10	12.9	10	-
30002B	31.75	1.25	168	16.1	10	16.1	10	-
84A	31.75	1.25	178	9.7	Thru	9.7	10	-
84B	31.75	1.25	178	12.9	10	12.9	10	-
84C	31.75	1.25	178	12.9	10	9.7	10	-
232M	38	1.45	150	12.9	10	12.9	10	-
30003M	38	1.45	150	12.9	Thru	12.9	10	-
232H	38	1.45	150	13.8	Thru	12.9	10	-
30003R	38	1.45	170	12.9	10	12.9	10	-

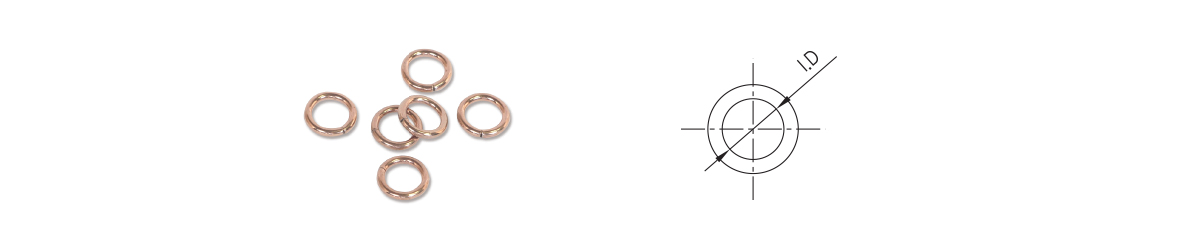

焊环   Brazing Ring

(mm)

Model	Wire	Ring	Remark
	OD	ID
16690	1.6	6.9	-
16794	1.6	7.94	-
16942	1.6	9.42	-
18942	1.8	9.42	-

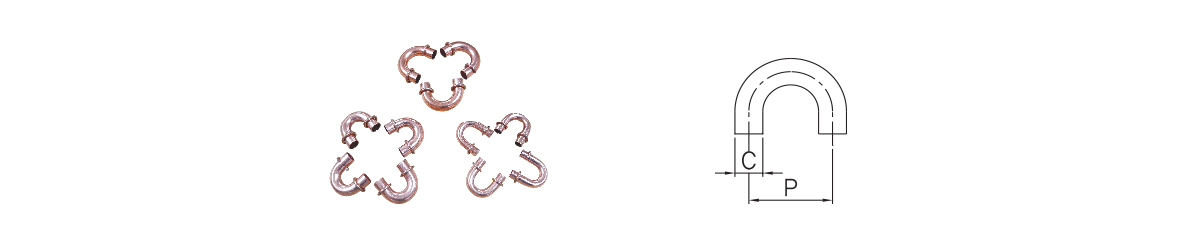

U-bend  Return Bend

(mm)

Model	Pipe Spec.		C	P	H	Remark
	OD	T
741A	7	0.41	7	21	20	-
741B	7	0.41	7	19	20	-
952A	9.52	0.5	9.52	22.88	22.6	-
952B	9.52	0.5	9.52	25.4	24	-

网状立式分歧管   Distributor (Insert Screen type)

(mm)

Model	Pipe Spec.		L	In		Out		Remark
	OD	T		A	D1	N (Hole)	B
37801	25.4	1.15	50	9.7	10	2	4.9	Screen
351K	25.4	1.15	60	6.5	10	5	2.8	Screen
351L	25.4	1.15	60	6.5	10	4	2.8	Screen
351M	25.4	1.15	60	6.5	10	3	2.8	Screen
351P	25.4	1.15	60	6.5	10	5	3.4	Screen
351T	25.4	1.15	60	6.5	10	6	2.8	Screen
351Y	25.4	1.15	60	6.5	10	3	3.4	Screen
9203	25.4	1.15	60	6.5	10	7	3.4	Screen
351C	25.4	1.15	60	8.1	10	4	2.7	Screen
351A	25.4	1.15	60	9.7	10	5	2.8	Screen
351D	25.4	1.15	60	9.7	10	6	2.8	Screen
351E	25.4	1.15	60	9.7	10	3	2.8	Screen
351N	25.4	1.15	60	9.7	10	4	5	Screen
351Q	25.4	1.15	60	9.7	10	5	4.2	Screen
351U	25.4	1.15	60	9.7	10	4	3.4	Screen
351X	25.4	1.15	60	9.7	10	3	3.4	Screen
351Z	25.4	1.15	60	9.7	10	5	3.4	Screen
20720B	25.4	1.15	60	9.7	10	9	2.8	Screen
20720G	25.4	1.15	60	9.7	10	3	3.4	Screen
20720N	25.4	1.15	60	9.7	10	8	3.4	Screen
20720Z	25.4	1.15	60	9.7	10	8	3.4	Screen
9204	25.4	1.15	60	9.7	10	6	3.4	Screen
20720Q	25.4	1.15	60	12.9	10	8	2.8	Screen
24150A	25.4	1.15	65	6.5	10	6	3.4	Screen
20720A	38	1.45	85	9.7	10	10	3.4	Screen
20720D	38	1.45	85	9.7	10	8	3.4	Screen
20720K	38	1.45	85	9.7	10	8	4.2	Screen
20720R	38	1.45	85	9.7	10	9	3.4	Screen
20720X	38	1.45	85	9.7	10	11	2.8	Screen
213M	38	1.45	105	9.7	10	6	4.2	Screen
213Y	38	1.45	105	9.7	10	12	3.4	Screen
2531C	38	1.45	105	9.7	10	6	2.8	Screen
2531E	38	1.45	105	9.7	10	5	3.4	Screen
2531K	38	1.45	105	9.7	10	6	2.8	Screen
2531P	38	1.45	105	9.7	10	6	3.4	Screen
2531U	38	1.45	105	9.7	10	6	4.2	Screen
2531X	38	1.45	105	9.7	10	7	4.2	Screen
2531Y	38	1.45	105	9.7	10	8	4.2	Screen
213B	38	1.45	105	11.6	10	10	2.8	Screen
213F	38	1.45	105	11.6	10	12	2.8	Screen
929A	38	1.45	105	11.6	Thru	9	2.8	Screen
929B	38	1.45	105	11.6	Thru	8	2.8	Screen
929H	38	1.45	105	11.6	Thru	10	3.4	Screen
929J	38	1.45	105	11.6	Thru	8	3.4	Screen
929K	38	1.45	105	11.6	Thru	5	3.4	Screen
929L	38	1.45	105	11.6	Thru	12	3.4	Screen
213X	38	1.45	105	12.9	10	12	2.8	Screen
2531R	38	1.45	105	12.9	10	6	3.4	Screen
2531T	38	1.45	105	12.9	10	7	3.4	Screen
23409B	38	1.45	105	12.9	10	8	4.2	Screen
23409D	38	1.45	105	12.9	10	9	3.4	Screen
23409E	38	1.45	105	12.9	10	8	3.4	Screen
3394A	38	1.45	105	12.9	10	15	2.8	Screen
21174E	38	1.45	140.5	9.7	Thru	2	9.7	Screen

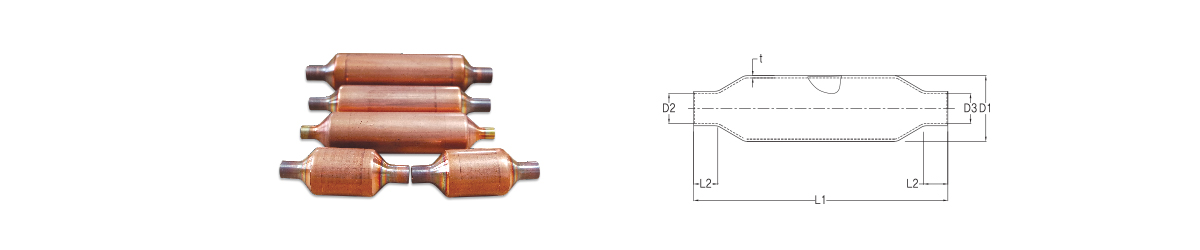

过滤器   Strainer

(mm)

Model	Pipe Spec.		L	In		Out		Remark
	OD	T		A	D1	B	D2
3659D	19.05	0.95	60	2.75	10	9.7	10	Screen
3659L	19.05	0.95	60	6.5	10	6.5	10	Screen
3659W	19.05	0.95	60	6.5	10	8.1	10	Screen
20005J	19.05	0.95	60	6.5	10	6.5	10	Screen
1301	19.05	0.95	60	7.5	Thru	6.5	10	Screen
3659C	19.05	0.95	60	9.7	10	8.1	10	Screen
3659M	19.05	0.95	60	9.7	10	9.7	10	Screen
20005H	19.05	0.95	60	9.7	10	9.7	10	Screen
1302	19.05	0.95	60	9.7	10	11.1	Thru	Screen
20005G	19.05	0.95	60	12.9	10	12.9	10	Screen
20002V	19.05	0.95	85	9.7	10	8.1	10	Screen
20002W	19.05	0.95	95	16	10	16	10	Screen
3659X	25.4	1.15	60	9.7	10	9.7	10	Screen
3659N	25.4	1.15	60	12.9	10	12.9	10	Screen
3659R	25.4	1.15	65	10.7	Thru	12.9	10	Screen
3659Q	25.4	1.15	65	12.9	10	9.7	10	Screen
20002C	25.4	1.15	70	12.9	10	12.9	10	Screen (Coupling)
						9.7	10
3659U	25.4	1.15	85	6.5	10	12.9	10	Screen
3659V	25.4	1.15	85	6.5	10	9.7	10	Screen
20002J	25.4	1.15	85	8.1	10	12.9	10	Screen
20002Q	25.4	1.15	85	8.1	10	9.7	10	Screen
20002U	25.4	1.15	85	9.7	10	9.7	10	Screen
20001A	25.4	1.15	85	12.9	10	9.7	10	Screen
20002D	25.4	1.15	85	12.9	10	12.9	10	Screen
20002T	25.4	1.15	85	12.9	10	12.9	10	Screen
20002A	25.4	1.15	85	17	10	19.2	10	Screen
20005L	25.4	1.15	114	8.6	10	6.5	10	Screen
20005M	25.4	1.15	114	12.9	10	8.1	10	Screen
20005N	25.4	1.15	114	12.9	10	12.9	10	Screen
4409	31.75	1.25	108	9.7	Thru	6.5	Thru	Screen
GS0952	31.75	0.8	115	9.7	10	9.7	10	Screen
GS1270	31.75	0.8	115	12.9	10	12.9	10	Screen
GS1588	31.75	0.8	115	16.1	10	16.1	10	Screen
20002F	38	1.45	95	17	Thru	19.2	10	Screen
GS1905	38	1	150	19.2	10	19.2	10	Screen
GS2222	38	1	150	22.4	10	22.4	10	Screen
20002P	38	1.45	150	28.2	15	28.2	15	Screen
20005D	38	1.45	170	12.9	15	12.9	15	Screen
20005E	38	1.45	170	19.2	15	19.2	15	Screen
20005F	38	1.45	170	22.4	15	22.5	15	Screen
1701	38	1.45	170	23	25	22.3	12	Screen
1702	38	1.45	170	23	25	28.1	12	Screen
20005A	38	1.45	170	28.2	15	28.2	15	Screen
36978	41.3	1.45	120	16.05	10	16.05	10	Screen

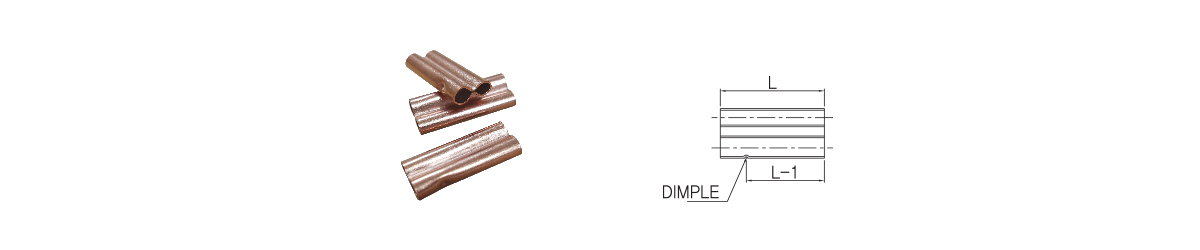

传感器支架   Sensor Holder

(mm)

Model	Pipe Spec.		L	L-1	ID	Remark
	OD	T
1037B	12.7	0.8	36	27	7.3	-
1037D	12.7	0.8	36	27	6.5	-
1037H	12.7	0.8	36	27	5.3	-

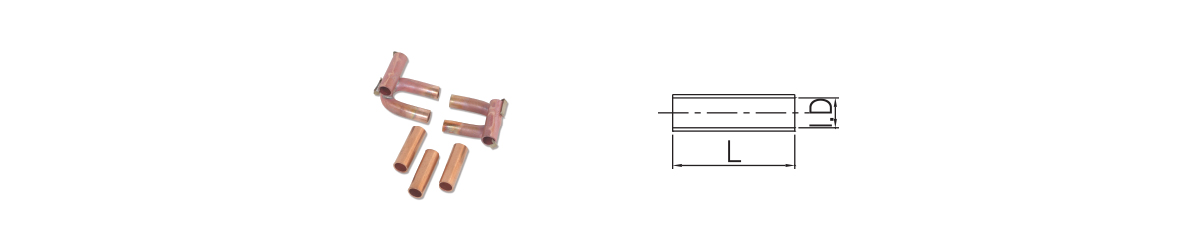

固定夹插入式传感器支架   Sensor Holder (insert Clip)

(mm)

Model	Pipe Spec.		L	ID	Remark
	OD	T
22409A	7.7	0.7	26.5	6.3
22409B	9.6	0.7	27	8.2
22409C	8.6	0.7	27	7.2
